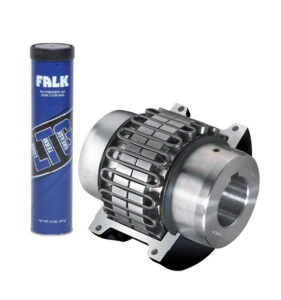

Rexnord has been manufacturing and improving our Falk Steelflex Grid Couplings for nearly a century. Known for durability in critical applications, proven performance and versatile design, these couplings are the most frequently specified grid coupling in North America.

Falk T10 Steelflex Grid Couplings

The Falk Steelflex T10 Grid Coupling is a double-flexing, close coupled, general purpose design suited for use in four-bearing systems.

Features a horizontally split cover which allows for grid replacement without movement to the connected equipment
Available in 25 sizes ranging from 1020T through 1260T
Accommodates torque loads up to 8,250,000 lb-in (932,126 Nm) and shaft diameters up to 20” (508mm)

Falk T20 Steelflex Grid Couplings

The Falk Steelflex T20 Grid Coupling is a double-flexing, close coupled, general purpose design ideal for higher running speeds.

Features a vertically split cover with allows for grid replacement without movement to the connected equipment
Available in 16 sizes ranging from 1020T through 1170T
Accommodates torque loads up to 660,000 lb-in (74,570 Nm) and shaft diameters up to 10” (254mm)

Falk T31 Steelflex Grid Coupling

The Falk Steelflex T31 Grid Coupling is a full spacer, general purpose design ideal for pump applications.

Features a complete center section engineered to drop out for easy service of connected equipment bearings and seals
Available in 19 sizes ranging from 1020T through 1200T
Accommodates torque loads up to 1,650,000 lb-in (186,440 Nm) and shaft diameters up to 20.88” (530mm)

Falk T35 Steelflex Grid Couplings

The Falk Steelflex T35 Grid Coupling is a half spacer, general purpose design ideal for pump applications.

Features a complete center section engineered to drop out for easy service of connected equipment bearings and seals
Available in 19 sizes ranging from 1020T through 1200T
Accommodates torque loads up to 1,650,000 lb-in (186,440 Nm) and shaft diameters up to 20.88” (530mm)

Falk T41 and T41-2 Steelflex Grid Couplings

The Falk Steelflex T41/41-2 Grid Coupling is a general purpose design providing adjustable slipping action to protect connected equipment from shock, jams, or temporary overload conditions.

Available in 19 sizes ranging from 1020T through 1200T
Accommodates torque loads up to 960,000 lb-in (108,460 Nm) and shaft diameters up to 19.60” (498mm)
