Rexnord Viva Elastomeric Couplings

Rexnord Viva Elastomeric Couplings feature a design based on the proven Rexnord Omega Couplings. Design upgrades to Viva allow for greater torque transmission with a smaller coupling. Incorporating the quality features of Omega, Rexnord Viva Couplings are non-lubricated, material-flexing split-in-half tire couplings. Viva Couplings are built for reliability in a variety of demanding applications including pumps, compressors, blowers, mixers, and more. This all-purpose coupling has excellent vibration damping capability helping to prolong the life of connected equipment.

Viva Close-Coupled Elastomeric Couplings

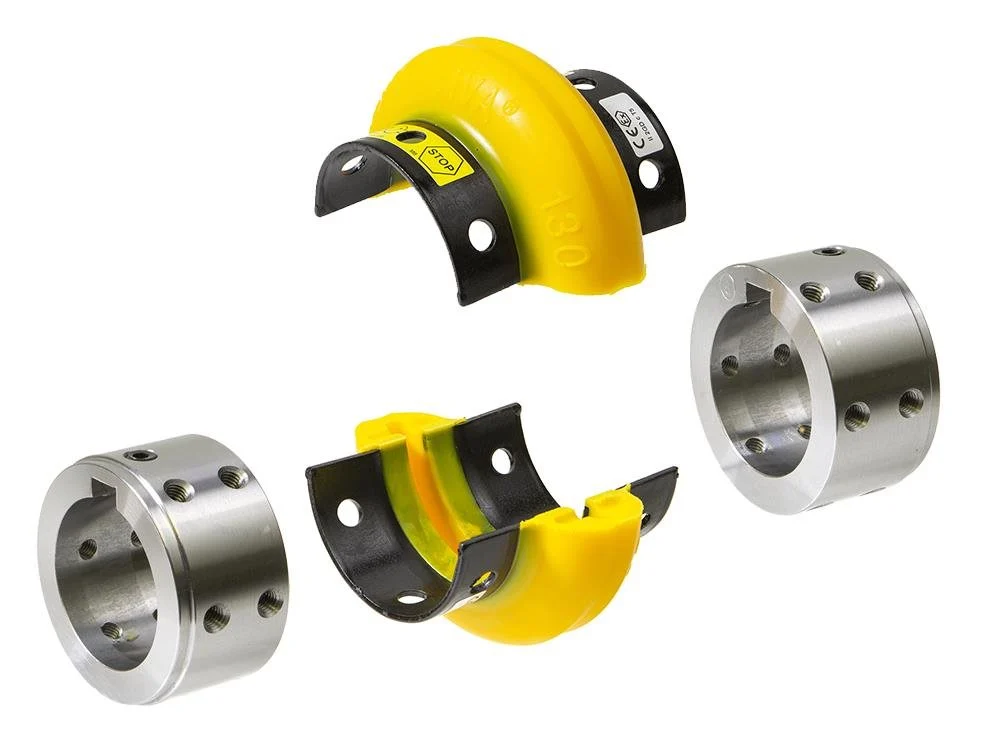

Viva close-coupled (V) elastomeric coupling consists of the unique split-in-half flex element and reversible hubs.

Supplied with metric fasteners
Hubs offered in rough bore, custom bore, and bushed designs
Connects equipment with shaft gap (distance between shaft end) up to 5.2” (132mm)
Accommodates shaft diameters up to 6.5” (165 mm)
Continuous torque loads up to 55,494 lb-in (6,270 Nm)
Available in 12 sizes ranging from 110 through 460

Viva Spacer Elastomeric Couplings

Viva spacer (VS) elastomeric coupling features a split-in-half flex element and reversible hubs with optional hole mounting positions.

Supplied with metric fasteners
Hubs offered in rough bore, custom bore, and bushed designs
Connects equipment with shaft gap (distance between shaft end) up to 5.2” (132mm)
Accommodates shaft diameters up to 6.5” (165 mm)
Continuous torque loads up to 55,494 lb-in (6,270 Nm)
Available in 12 sizes ranging from 110 through 460

Viva Extended Spacer Elastomeric Couplings

Viva extended spacer (VSX) elastomeric coupling with unique split-in-half flex element and reversible hubs for longer shaft gaps.

- Supplied with metric fasteners
- Hubs offered in rough bore, custom bore, and bushed designs
- Connects equipment with shaft gap (distance between shaft end) up to 11.8” (300mm)
- Accommodates shaft diameters up to 6.5” (165 mm)
- Continuous torque loads up to 55,494 lb-in (6,270 Nm)
- Available in 12 sizes ranging from VSX110 through VSX460
- Optional hole mounting positions and reversible hubs accommodate for most shaft spacing requirements
