Tank Bottom Valves and Bottom Outlet Valves

No-dead-space cone- or piston valves

Solutions for clean and secure tank drainage
RITAG bottom valves have been designed for trouble-free and efficient tank drainage. They are used wherever drainage through a normal on/off valve or a ball valve cannot be done, because of where it is installed, the medium, possible crust formation or that a dead-space may develop.

RITAG bottom valves are available in a cone or piston design. Both valve types are usually welded constructions. The advantages are obvious:

Welded constructions are free from casting defects.
Nearly any intake or discharge combination is possible. The angle of the valve discharge connection can be easily adapted to the mounting situation.
The design can be built in a number of different speciality materials according to need.
The interchangeable seat bush makes it possible to avoid long downtimes for maintenance.

Quick Menu

Industry Construction

Petroleum and Gas

Mechanical Engineering

Bridge Construction

Metal and Chemical

Power Enegies

Get Professional Help

+91-80-28488700

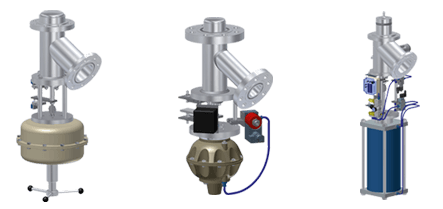

RITAG Type BA and BAS bottom valves − cone model

The Type BA bottom valve cone opens into the container. Only the spindle remains in the housing. In addition to the drive power, the container interior pressure helps in sealing the valve tightly.

Type BAS cone valves open into the valve. This has the advantage, in the case of containers with agitators, that the agitator is able to operate all the way to the wall. The container interior pressure acts here against the cone.

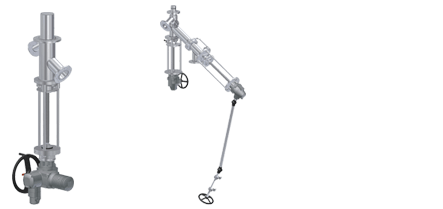

RITAG Type BV and BVS bottom valves − piston model

Type BV piston valves as a rule open into the valve and therefore keep the entire cross section of the housing open. Furthermore, it is possible to use the piston to break through a crust and then open into the valve.

If the container is covered with soil it is difficult to install a valve under the container. Therefore, for Type BVS valves, the valve had to be placed into the tank. Weights make sure that the valve is closed securely in case the controlling air pressure should fail.
